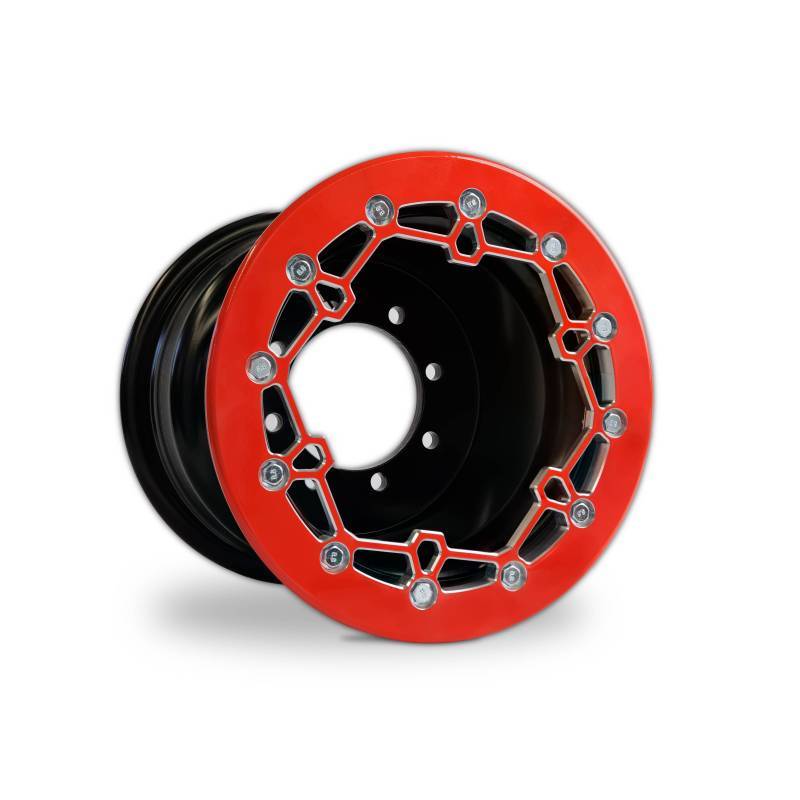

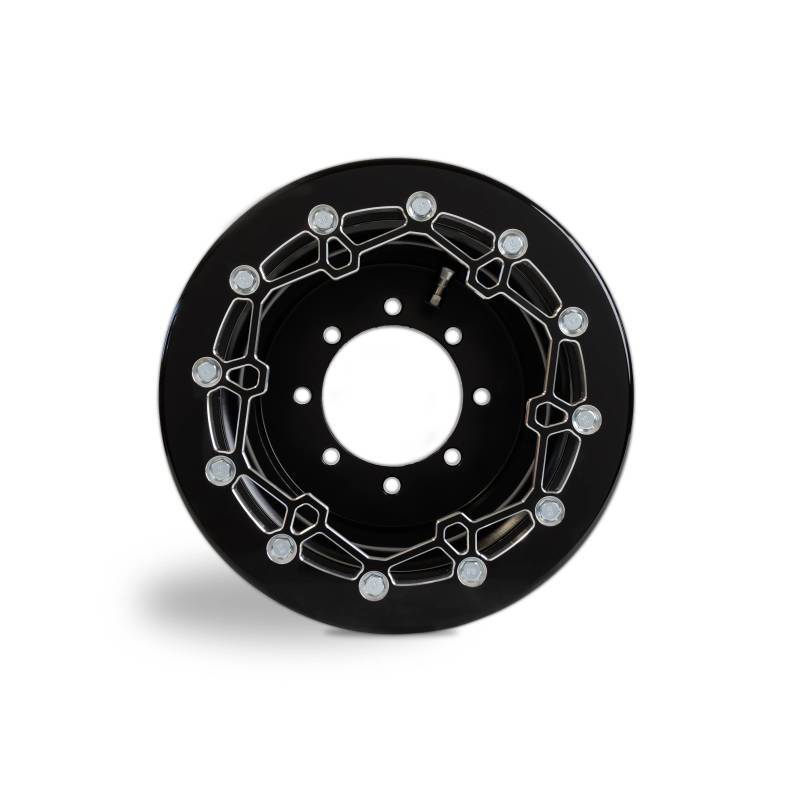

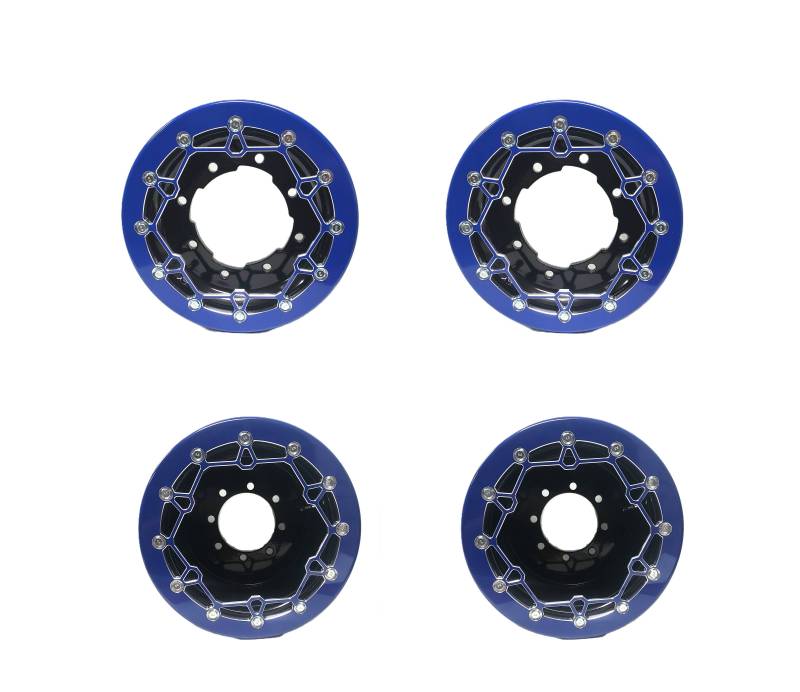

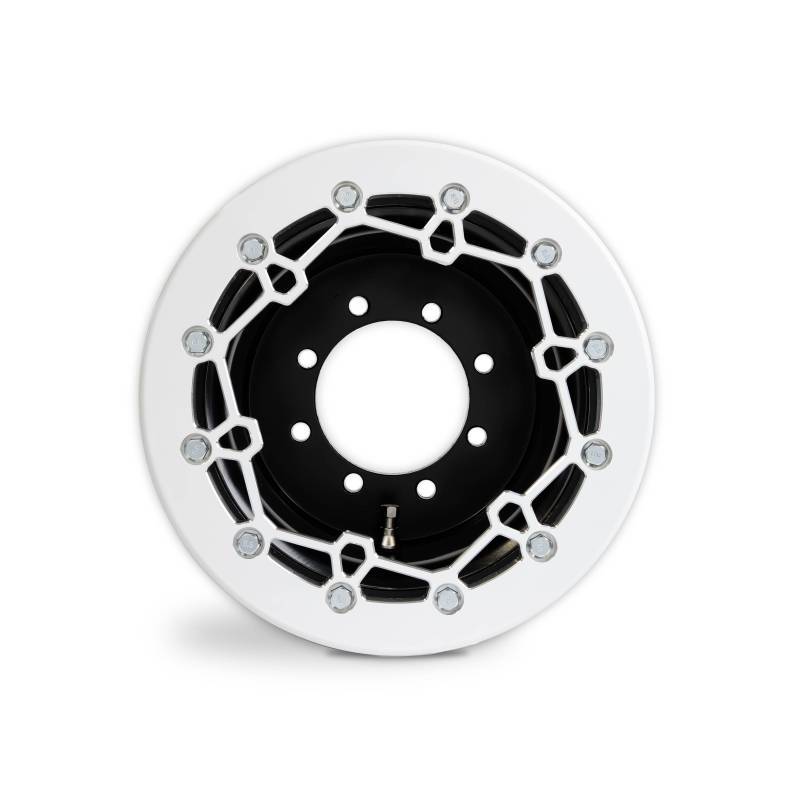

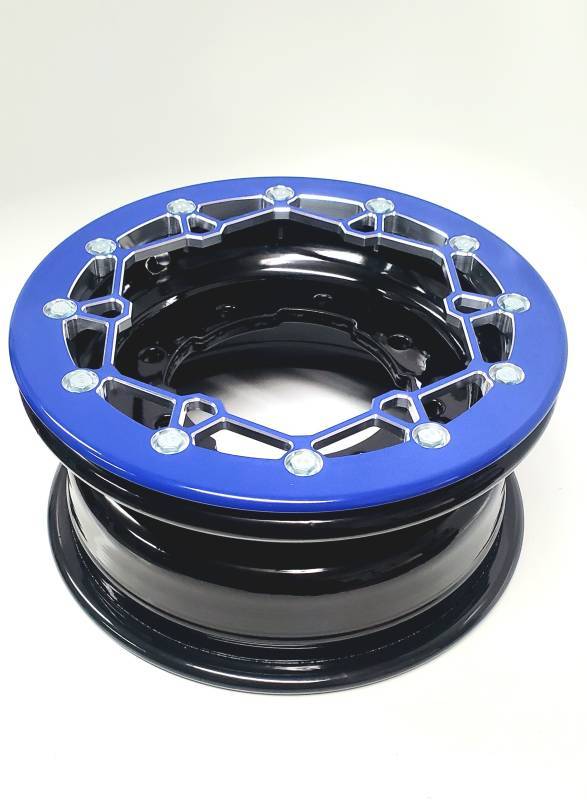

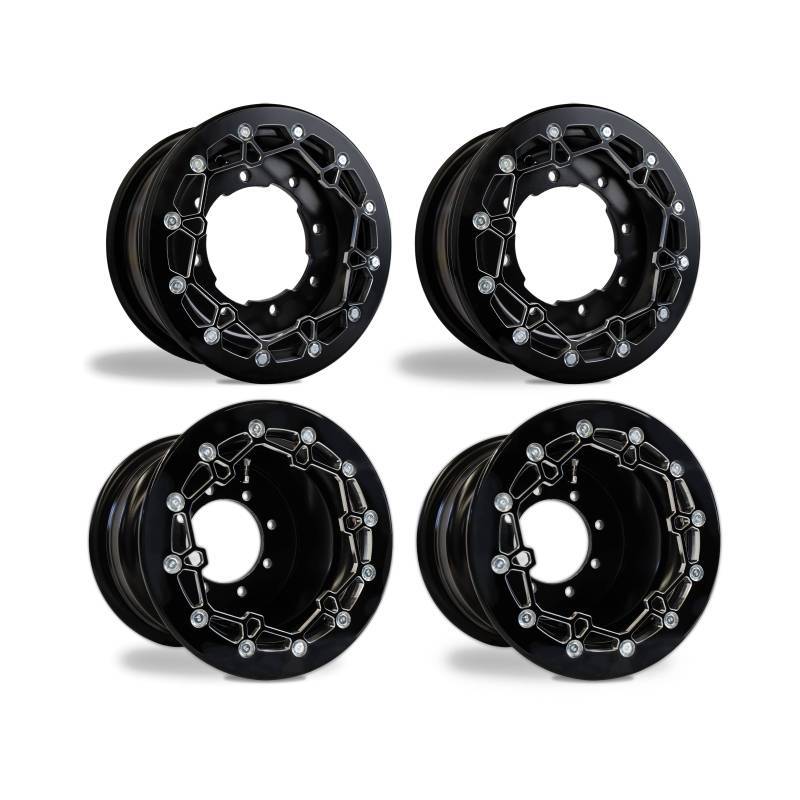

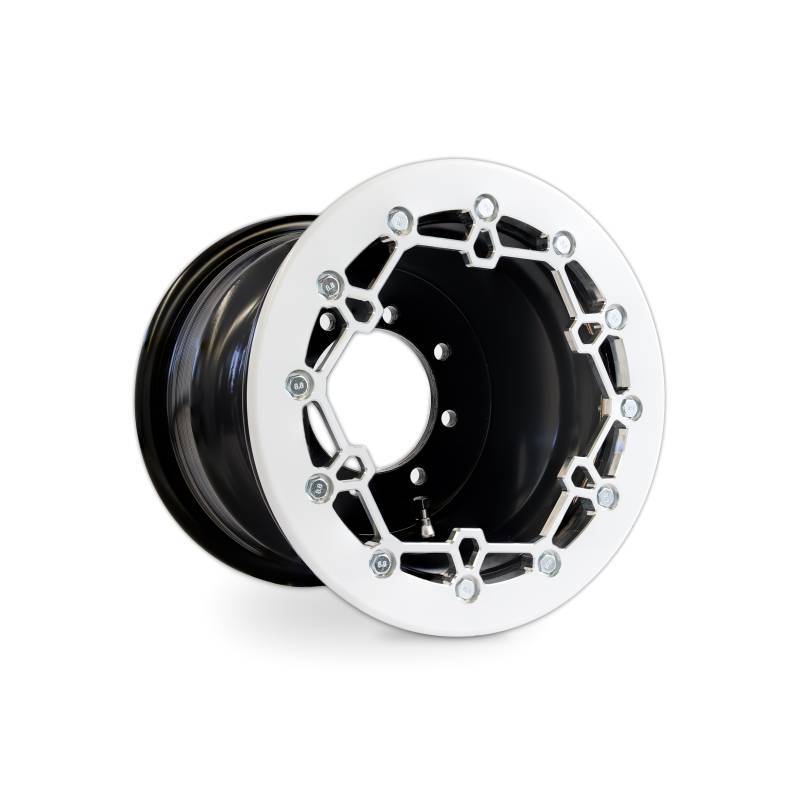

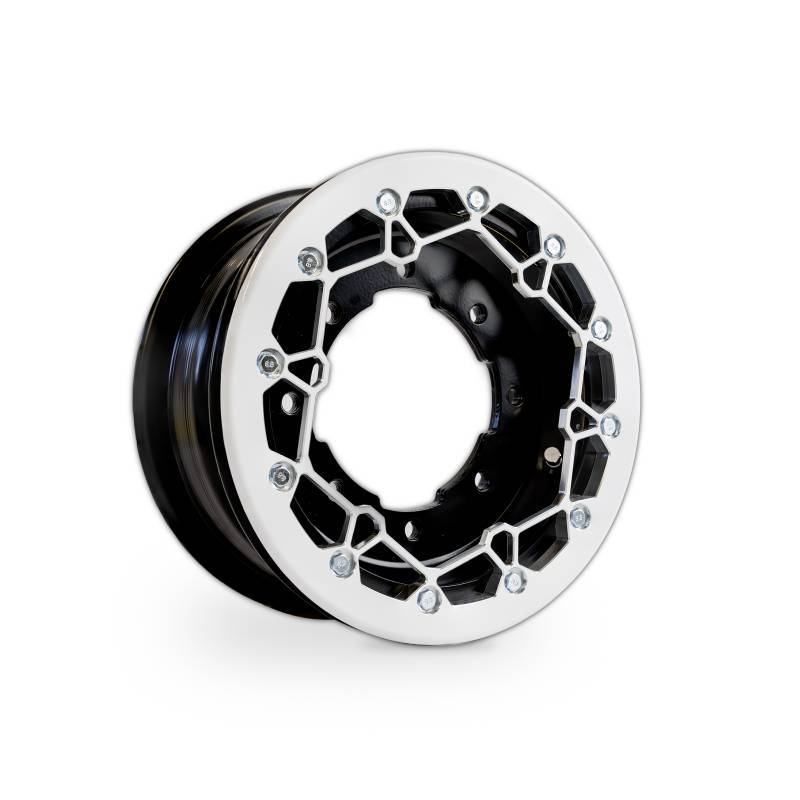

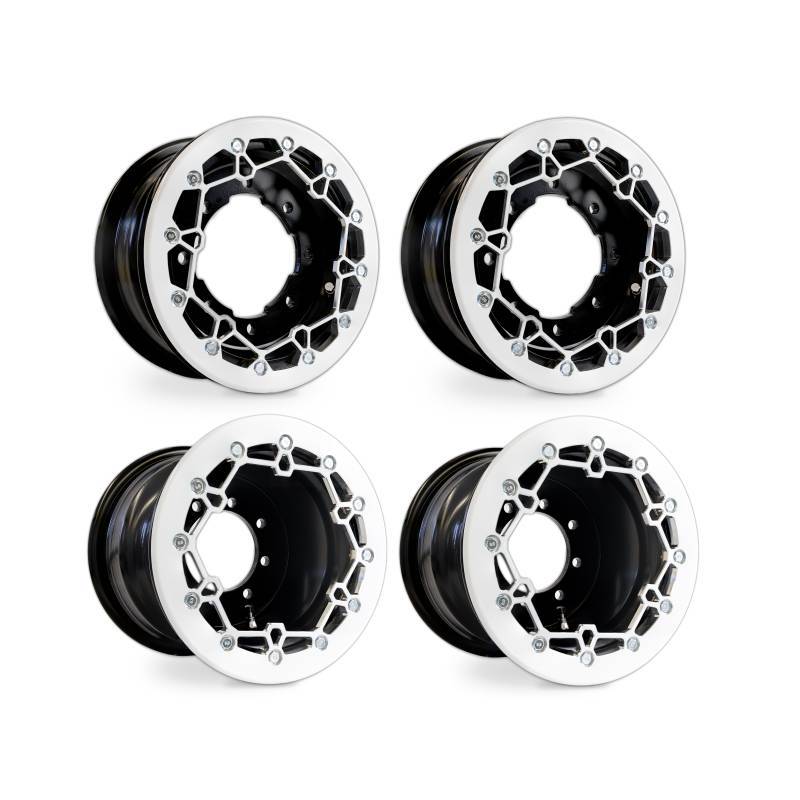

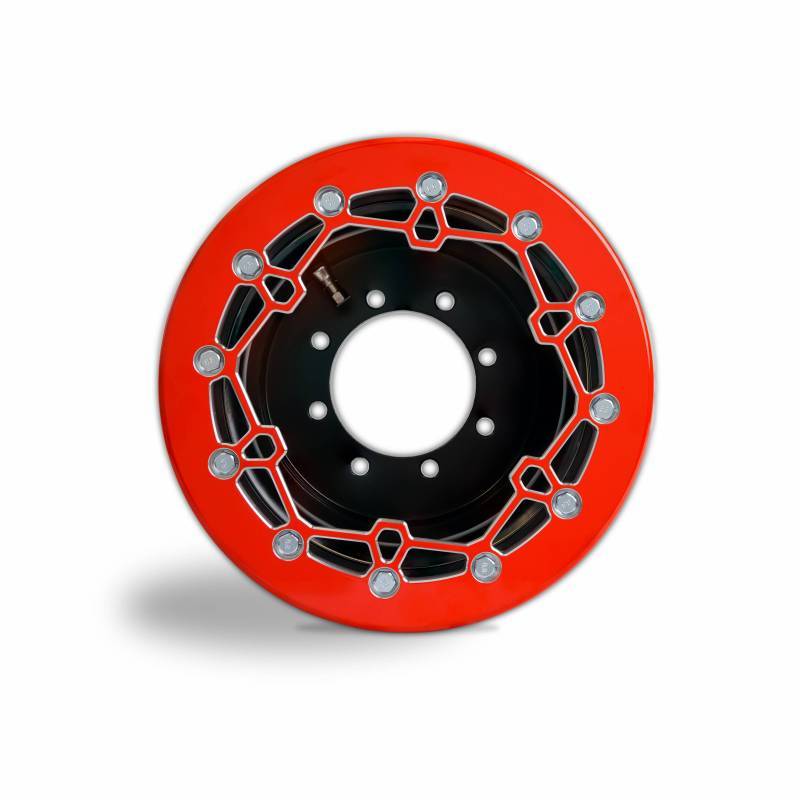

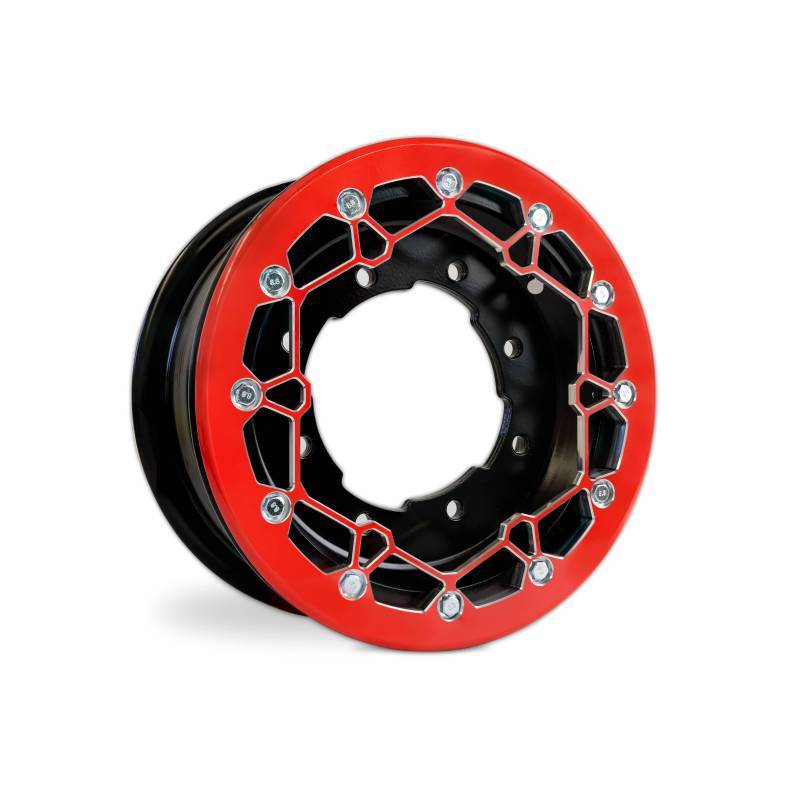

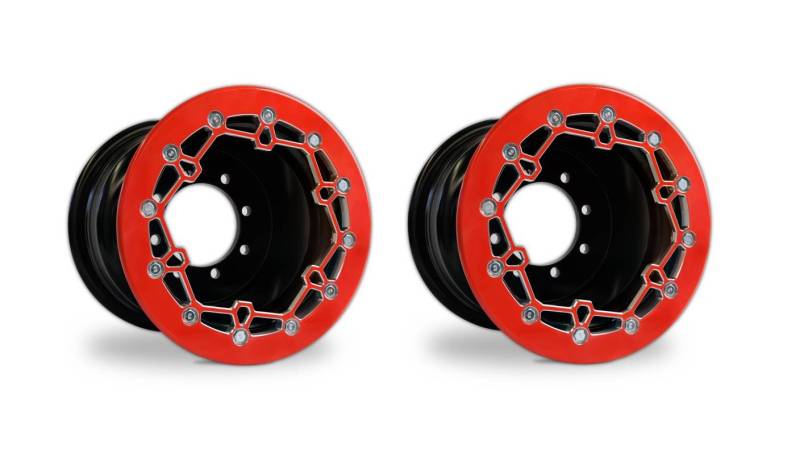

ARMAT by Alba Racing ATV BILLET RING Beadlock Gloss Wheels (Pick Colors)
Wheel Finish:

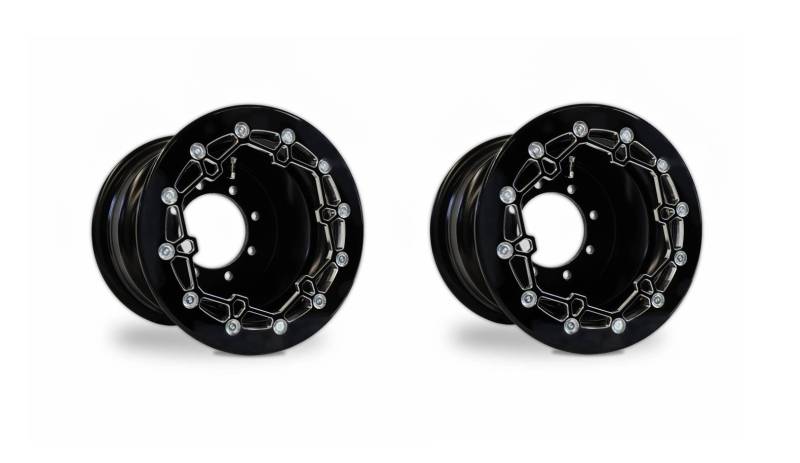

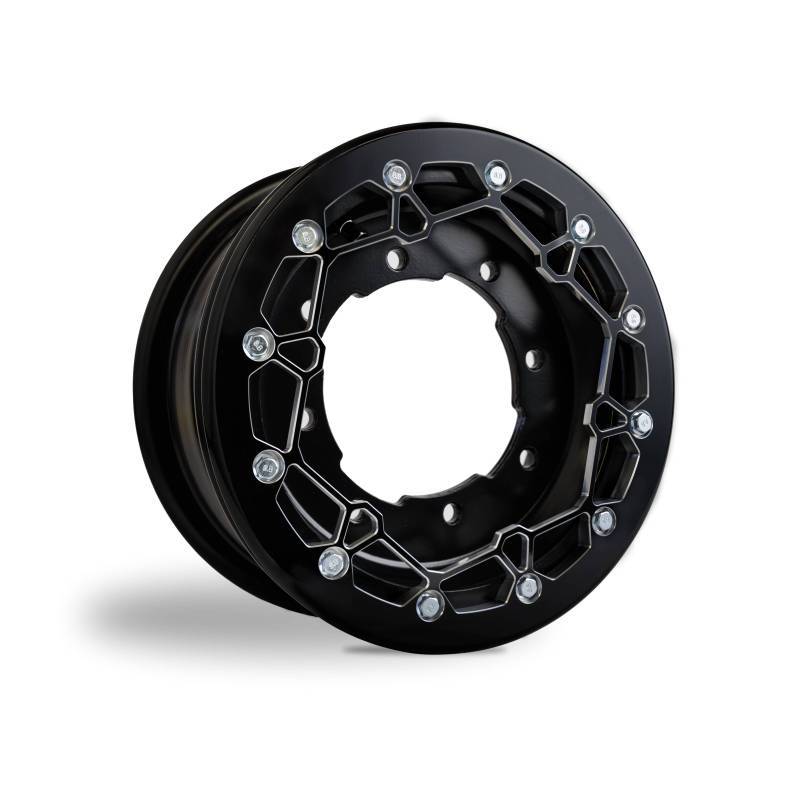

Powder Coat High Gloss Black (Wheel photo is shown in MATTE, YOU WILL RECVIEVE A GLOSS WHEEL! We are waiting on Pictures in GLOSS!)
Beadlock Rings:

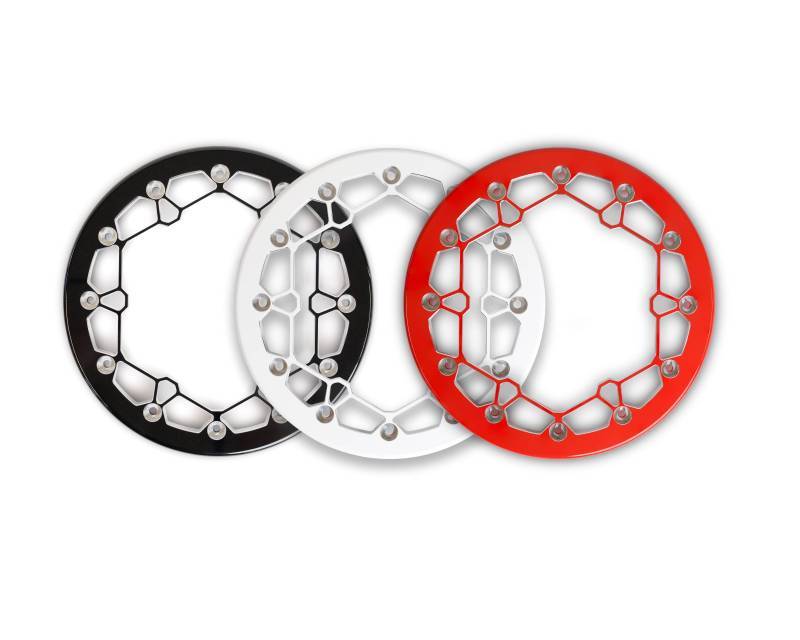

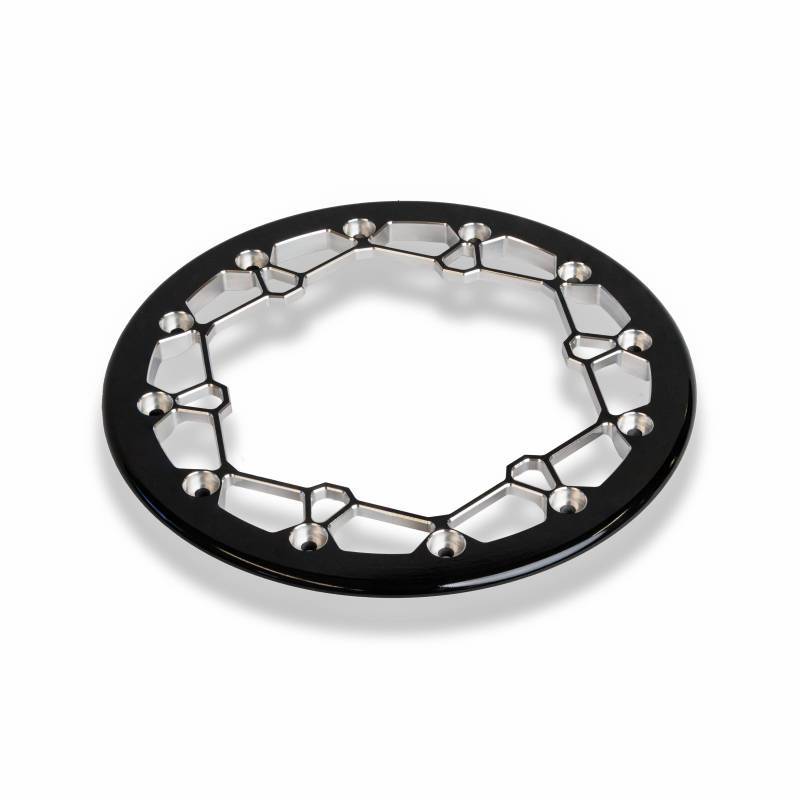

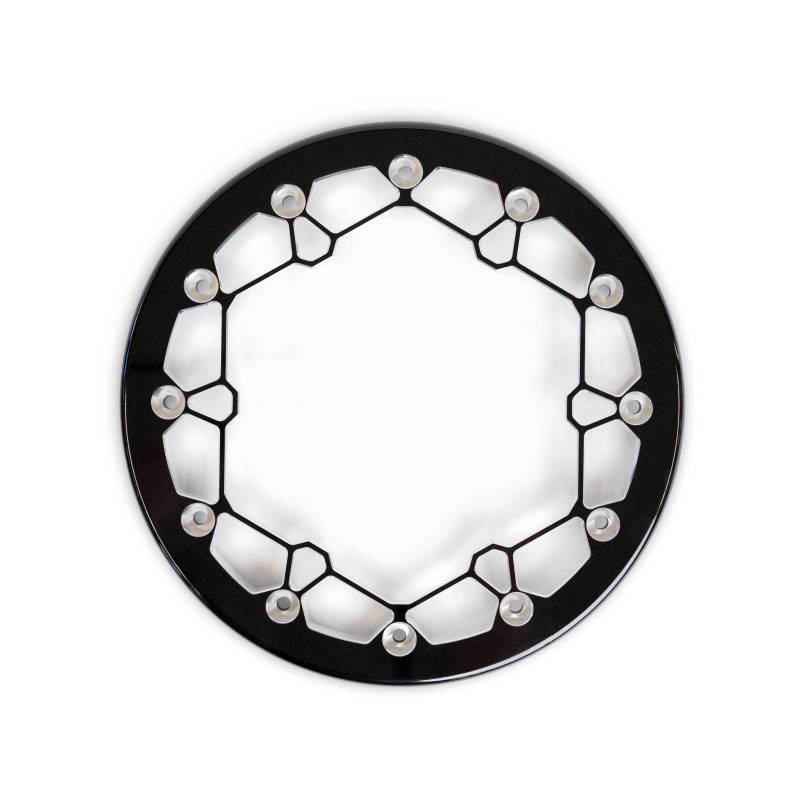

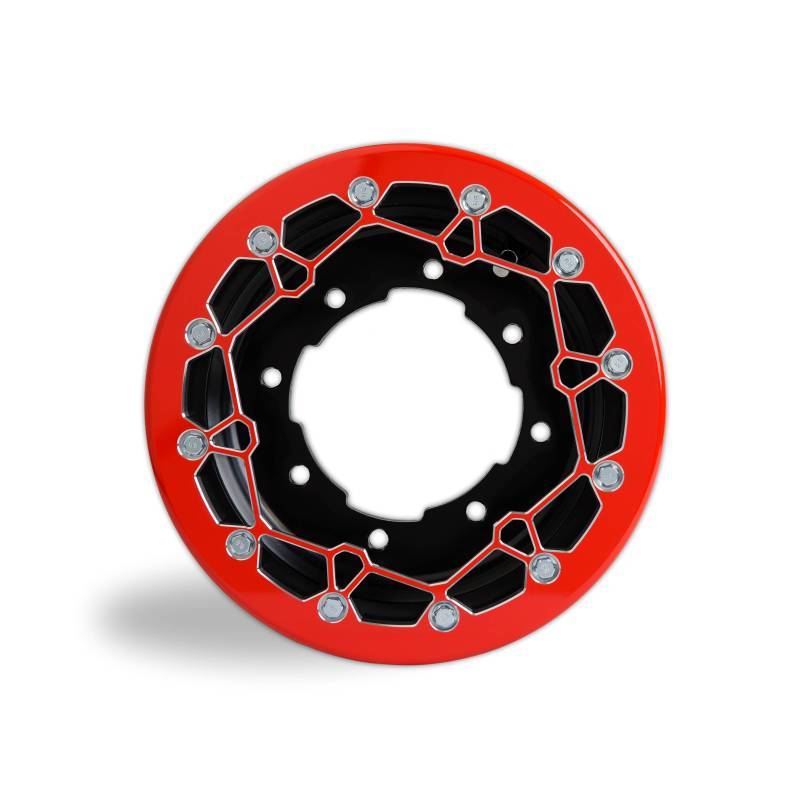

Billet 6061 CNC RINGS (Choose your color)
Features:

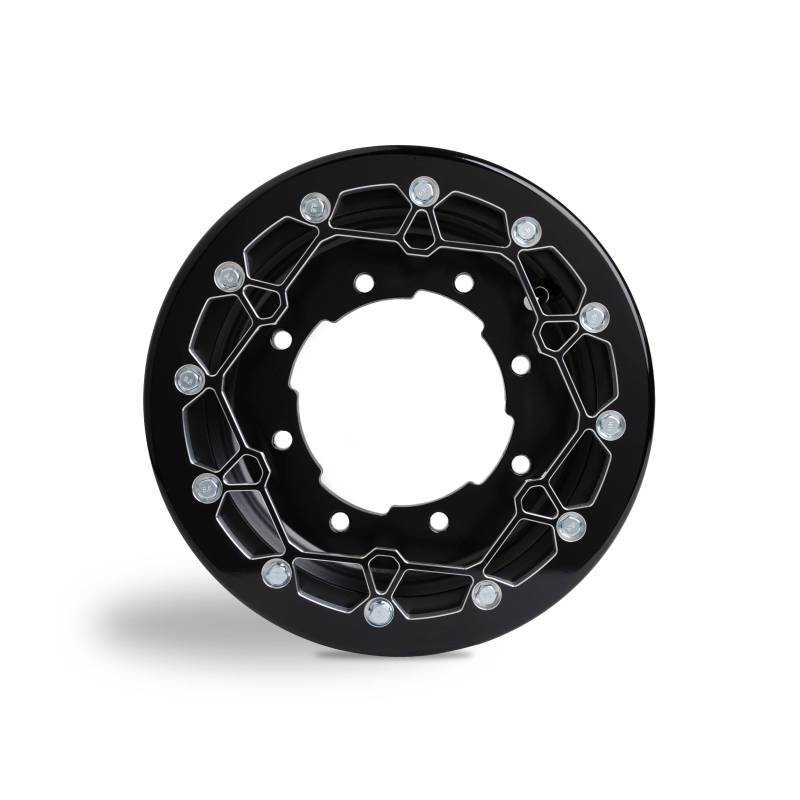

-Official wheel of the Big Air Team. (See pic 2)
-Beadlock wheel is constructed of .160/.190 aluminum.
-The inside lip is rolled for extreme toughness.
-Deep drop center.
-Wheels and rings are powder coated for long lasting finish.
-Multi Pattern Design Allows for 4/110 & 4/115 + 4/144 & 4/156 on the same wheel! (Wheels have 8 holes)
Includes:
-Wheel
-Valve Stems
-Bead-lock ring
-Bead-lock ring hardware kit
**SOLD PER WHEEL. If you need 4 order qty 4.
**Optional Alba Racing mud plugs
10" front wheels 6.4 LBS Ea.
10" rear wheels 7.8 LBS Ea.
9" rear wheels 6.65 LBS Ea.
8" rear wheels 5.75 LBS Ea.
BILLET HARDWARE NOTE: UV Light fades anodized aluminum. If your bike sits outside 24/7 consider standard Zinc hardware!
BOLT SIZE: M6 x 1.0 25MM long (27MM long for thick tires)
SEE BELOW FOR TIRE AND WHEEL SIZE INFO
Description
They are made from Heat Treated Spun Aluminum. Spun Aluminum does not crack like cast. Cast wheels will typically crack or "Shatter" on impact due to cast metals being brittle and porous from the manufacturing process. Our wheels are drastically stronger than a cast wheel but if you do experience a sharp high speed impact they will bend and at least not shatter like a cast wheels. They also typically still hold air if bent letting you get home and not leaving you stranded on the trail! This is the reason racers prefer a non-cast wheel.
They are made .160/.190 aluminum, and the inner lip is rolled for two times the strength. They are powder-coated for a long lasting finish. The wheel come in either Black or High Polish Aluminum. The rings come in multiple colors. See the drop down box for in stock colors.
The wheels have both 2 sets of holes per wheel. (4/110 + 4/115 & 4/144 + 4/156) They will work on any sport ATV. Honda, Suzuki, Yamaha, Kawasaki, KTM, ETC.
Option Mud Plug's keep mud from packing in the wheel, causing unbalance. They require preheating for installation, Search Alba Racing Mud Plug on You-tube for more info!
BOLT PATTERN GUIDE-
Honda TRX450R, 400EX, 300EX- Rear 4/110 Front 4/144
Kawasaki KFX450, KFX400- Rear 4/110 Front 4/144
Kawasaki KFX700- Front 4/144
Polaris Predator 500- Rear 4/115 Front 4/156
Suzuki LTZ400, LTR450- Rear 4/110 Front 4/144
Yamaha Banshee, Warrior- Rear 4/115 Front 4/156
Yamaha Raptor 700,660,350,250,125- Rear 4/115 Front 4/156
Yamaha YFZ450, YFZ450R- Rear 4/115 Front 4/156
KTM 450, 505, 525- Rear 4/110 Front 4/156
Wheel offset-
4+1 is stock wheel offset 3+2 will add +1 width per side
Tire size explanation-
1st Number = The overall tire height when inflated (Example a 20x11-9 tire is 20" tall).
2nd Number = The overall tire width when inflated (Example a 20x11-9 tire is 11" wide).
3rd Number = The rim or wheel diameter (Example a 20x11-9 tire uses 9" diameter wheel).
Tire Size Chart-
18x6-10 Uses a 10x5 wheel
18x7-10 Uses a 10x5 wheel
19x6-10 Uses a 10x5 wheel
19x7-10 Uses a 10x5 wheel
20x7-10 Uses a 10x5 wheel
21x7-10 Uses a 10x5 wheel
22x7-10 Uses a 10x5 wheel
23x7-10 Uses a 10x5 wheel
20x12-10 Uses a 10x8 wheel
21x12-10 Uses a 10x8 wheel
22X12-10 Uses a 10x8 wheel
23x12-10 Uses a 10x8 wheel
18x10-9 Uses a 9x8 wheel
18x11-9 Uses a 9x8 wheel
20x10-9 Uses a 9x8 wheel
20x11-9 Uses a 9x8 wheel
22x10-9 Uses a 9x8 wheel
22x11-9 Uses a 9x8 wheel
18x10-8 Uses a 8x8 wheel
18x11-8 Uses a 8x8 wheel
20x10-8 Uses a 8x8 wheel
20x11-8 Uses a 8x8 wheel
WARNING: California Residents, this item is subject to Proposition 65 regulations for cancer and reproductive harm.
Videos
Wheel/Tire Size Info
Honda TRX450R, 400EX, 300EX- Rear 4/110 Front 4/144
Kawasaki KFX450, KFX400- Rear 4/110 Front 4/144
Kawasaki KFX700- Front 4/144
Polaris Predator 500- Rear 4/115 Front 4/156
Suzuki LTZ400, LTR450- Rear 4/110 Front 4/144
Yamaha Banshee, Warrior- Rear 4/115 Front 4/156
Yamaha Raptor 700,660,350,250,125- Rear 4/115 Front 4/156
Yamaha YFZ450, YFZ450R- Rear 4/115 Front 4/156
KTM 450, 505, 525- Rear 4/110 Front 4/156
Wheel offset-
4+1 is stock wheel offset
3+2 will add +1 width per side
Tire size explanation-
1st Number = The overall tire height when inflated (Example a 20x11-9 tire is 20" tall).
2nd Number = The overall tire width when inflated (Example a 20x11-9 tire is 11" wide).
3rd Number = The rim or wheel diameter (Example a 20x11-9 tire uses 9" diameter wheel).
Tire Size Chart-
18x6-10 Uses a 10x5 wheel
18x7-10 Uses a 10x5 wheel
19x6-10 Uses a 10x5 wheel
19x7-10 Uses a 10x5 wheel
20x7-10 Uses a 10x5 wheel
21x7-10 Uses a 10x5 wheel
22x7-10 Uses a 10x5 wheel
23x7-10 Uses a 10x5 wheel
20x12-10 Uses a 10x8 wheel
21x12-10 Uses a 10x8 wheel
22X12-10 Uses a 10x8 wheel
23x12-10 Uses a 10x8 wheel
18x10-9 Uses a 9x8 wheel
18x11-9 Uses a 9x8 wheel
20x10-9 Uses a 9x8 wheel
20x11-9 Uses a 9x8 wheel
22x10-9 Uses a 9x8 wheel
22x11-9 Uses a 9x8 wheel
18x10-8 Uses a 8x8 wheel
18x11-8 Uses a 8x8 wheel
20x10-8 Uses a 8x8 wheel
20x11-8 Uses a 8x8 wheel
