ARMAT by Alba Racing Honda TRX450r Adjustable Long Travel A-Arm

Fit Honda TRX450. Pick year on drop down box.

Alba Racing long travel a-arms.

-.120 wall 4130 chromoly construction.
-Plus 2" inches wider per side.
-Pre installed delrin bushings and steel sleeves.
-Easily adjust camber and castor.
-Includes adaptors to run your stock shocks. (O.E.M. shocks re-valving recommended)
-Long travel shock length = 20"

-2 upper and 2 lower a-arms.
-Complete set of delrin bushings and steel sleeves.
-2 Standard travel adaptors.
-2 Stainless steel tie rods. (Uses your OEM tie rod ends).
-2 Upper and 2 lower balljoints.
-Caster adjustment spacers.

**Optional: Extended arms require extended brake lines.
-Brake line clamps. (only for extended stainless lines)
-Stainless extended brake lines.


Updated 5/21/24

Pricing: $435.99
5 5 1

Customize Your Item

- Add Brake Line Clamps -
 * required
- Add Extended Brake Lines -
 * required
- Select Year -
 * required
Free standard shipping We will select the shipping method.


We believe our a arms are among the best you can buy. We know they are the best you can buy for the price! With our radical new adapter you can run either stock or long travel shocks. Add the quality materials and construction, full adjustability and high ground clearance and you know they can't be beat!

WIDTH - +2 each side for a 4" wider front end

CAMBER - fully adjustable thru the lower ball joints. No need to remove the arms to make the adjustment like you have to with many other brands.

CASTER - 3 way adjustable by changing spacers on the upper a arm - all around, MX, desert (changes how quick your bike turns)

GULLWING SHAPE - The swept design of our arms give you the maximum possible clearance in ruts and other obstacles. When other a arms will drag thru the high ridges these will glid over the top - not to mention the design looks badass.

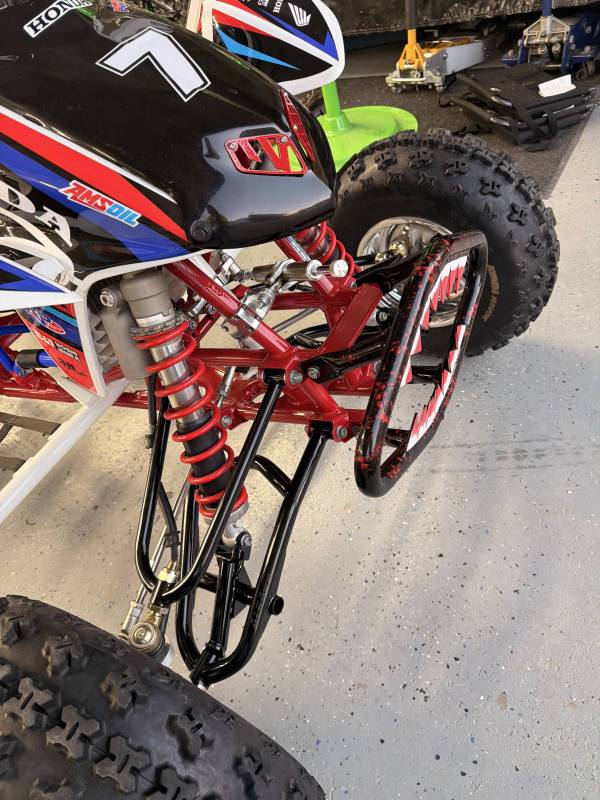

LONG/STANDARD TRAVEL - Exclusive to Alba. Can't afford shocks yet? Use the adapter and run your stock shocks or your standard travel aftermarket shocks. When you are ready to upgrade to long travel shocks take the adapter out and mount your long travel shocks -- no need to go out and spend another $700.00 on long travel a arms. Save big $$$ - Did you know most shock companies charge the same for long travel shocks as standard travel shocks? With Alba you can get your long travel system from the get go and save hundreds of dollars. You don't have to settle for a standard length system. Once you ride long travel you will never go back. The difference is incredible. One picture shows the a arms with the standard travel adapter installed. Do not use it for long travel.

CONSTRUCTION MATERIALS - We use .120 wall 4130 chromoly tubing, Delrin bushings and the highest quality ball joints. The arms are powder coated Matte black. NEW - WE HAVE UPGRADED THE STEEL SLEEVES TO CHROME. YOU GET LONGER LIFE AND LESS STICTION

One YEAR WARRANTY - Our a arms have a 1 year warranty for materials and craftsmanship. If you hit something and they bend we will not cover that. If you are riding and a weld cracks we will cover that. Wear items are not covered - ball joints, and Delrin bushings. This is backed by Alba Racing which has been in business for 20 years.

BRAKE LINES (optional) - These A-Arms are +2" longer per side than stock. Your stock lines will need to be replaces with longer brake lines to allow proper clearance. We offer this as a option at a discount when purchased as a kit here.

BRAKE LINE CLAMPS (optional) - These will not work on stock brake lines. These will give you a clean way to mount our stainless brake lines to your arms. Some people like to use 2 some prefer 4.



 WARNING: California Residents, this item is subject to Proposition 65 regulations for cancer and reproductive harm.


  • 218-AA-B
  • 218-AA-B
  • Honda
  • Honda TRX 450R
  • Updated 5/21/24

  • New


Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W18.0000” x H12.0000” x L10.0000”
  • Free standard shipping We will select the shipping method.

Customer Reviews

Comment Total Reviews (1)

great item
  • Currently 5/5 Stars

Reviewed by:

Product ownership: A year or longer

Not purchased from: Team Alba Racing

i have these a arms on my trx45or and work great...
