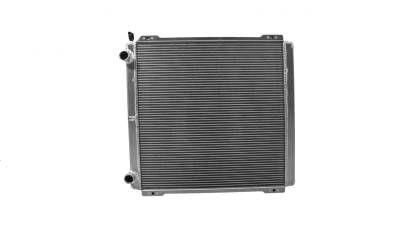

2017-2019 Can-am Maverick X3 Racing Radiator Double Pass Radiator – OEM Replacement by C&R

2017-2019 Can-am Maverick X3 Racing Radiator Double Pass – OEM Replacement

Features:

Handmade and Professionally Tig-welded in the USA

Engineered tube and R-fin technology for the highest heat rejection

Up to 40% increase in cooling efficiency

Double Pass for more cooling efficiency

PWR has developed an all-aluminum double pass radiator for the Can-Am Maverick X3. Handmade and Professionally Tig-welded in the USA, PWR’s high-performance radiator has been engineered with a double pass configuration for when high heat becomes an issue. With double the number of passes in the radiator, hot engine temps are in the past with up to 40% more cooling efficiency than OEM and other aftermarket radiators in the industry. Designed to retain all factory mounting, the PWR High-Performance radiator guarantees a quick and easy drop-in replacement to get you back out on the track.

DISCLAIMER: If the line that is cut is 6″ short, then you will need to purchase Gates 23617 or 22644 hose.

Can-am Maverick X3 Double Pass OEM Fitment Plumbing Instructions

Specs:

Radiator Style: Crossflow

Number of Passes: 2

Inlet Location: Top Right

Inlet Size: 1 Inch

Outlet Location: Bottom Right

Outlet Size: 1 Inch

Tube Size: 32 mm

Fitmenet:

2017+ Can-Am Maverick X3
